iOS实现通过按钮添加和删除控件的方法

2020-07-26 02:20:56
字体:
来源:转载
供稿:网友

本文实例为大家分享了iOS通过按钮添加和删除控件,供大家参考,具体内容如下

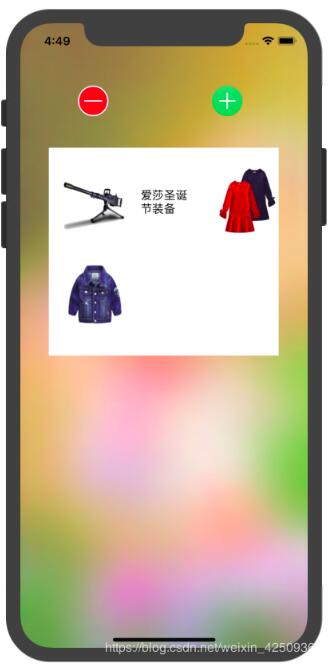

想要达到的效果如下:

先讲一下这个demo主要部分,即通过按钮实现增删图标

分析:

1、每一个图标需要两个数据,即图片和描述用的字符串 ,所以创建一个Item类来封装从plist文件读取出来的数据:

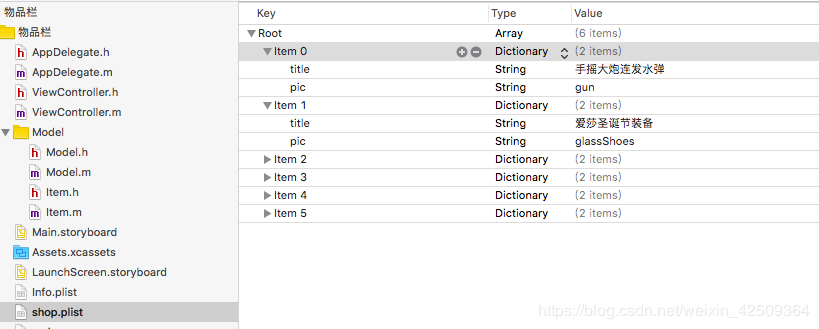

1)plist文件如下:

2)Item类:

.h文件

#import <Foundation/Foundation.h>@interface Item : NSObject//描述的字符串@property(nonatomic,copy)NSString * desStr;//图片路径@property(nonatomic,copy)NSString * imgPath;-(instancetype)initWithString:(NSString *)desStr andimgPath:(NSString *)imgPath;@end

.m文件

#import "Item.h"@implementation Item-(instancetype)initWithString:(NSString *)desStr andimgPath:(NSString *)imgPath{ self = [super init]; if (self) {  self.desStr = desStr;  self.imgPath = imgPath; } return self;}@end

2、然后创建一个Model类用于封装自定义的图标模型,我的模型是将Model类继承于UIScrollView类,然后设置其可以滚动,然后再创建一个占据整个scrollview可滚动部分大小的button添加上去。再分别在button上半部分添加UIImageView显示图片,在下半部分添加UILabel显示描述文字,结构如下

重写model的init方法,在创建对象时用item对象初始化:
model类:

1).h文件

#import <UIKit/UIKit.h>#import "Item.h"@interface Model : UIScrollView@property(nonatomic,strong)UIButton *button;@property(nonatomic,strong)UILabel *label;//判断button是否被点击@property(nonatomic,assign)BOOL isClicked;-(instancetype)initWithItem:(Item *)item;//重置模型-(void)resetModel;@end

2).m文件

-(instancetype)initWithItem:(Item *)item{ self = [super initWithFrame:CGRectMake(20, 20, 80, 100)]; if (self) {  //设置模块  self.contentSize = CGSizeMake(80, self.frame.size.height * 2);  self.pagingEnabled = NO;      //设置模块属性  self.button = [[UIButton alloc] initWithFrame:CGRectMake(0, 0, self.frame.size.width, self.contentSize.height)];  [self.button addTarget:self action:@selector(buttonDidClicked) forControlEvents:UIControlEventTouchUpInside];  //添加图片视图到button上  UIImageView *imgView = [[UIImageView alloc] initWithFrame:CGRectMake(0, 0, self.frame.size.width, self.frame.size.height)];  [imgView setImage:[UIImage imageNamed:item.imgPath]];  [self.button addSubview:imgView];  //设置button是否被点击  self.isClicked = NO;  [self addSubview:self.button];    self.label = [[UILabel alloc] initWithFrame:CGRectMake(0, self.frame.size.height, self.frame.size.width, self.frame.size.height)];  self.label.text = item.desStr;  self.label.font = [UIFont systemFontOfSize:15];  self.label.textColor = [UIColor blackColor];  self.label.numberOfLines = 0;  self.label.textAlignment = NSTextAlignmentLeft;  [self addSubview:self.label]; } return self;}

3)button的点击事件:即点击图片文字描述就会从下面升上来,再点击就会降下去的动作:

/label升降-(void)buttonDidClicked{ if (self.isClicked == NO) {  [UIView animateWithDuration:0.5 animations:^{   self.contentOffset = CGPointMake(0, self.frame.size.height);  }];  self.isClicked = YES; }else if (self.isClicked == YES) {  [UIView animateWithDuration:0.5 animations:^{   self.contentOffset = CGPointMake(0, 0);  }];  self.isClicked = NO; }}

另外,由于必须保证每次添加model到视图上时显示的是图片,所以需要一个方法来复原到初始状态,即一旦从视图上删除就复原:

//复原-(void)resetModel{  self.contentOffset = CGPointMake(0, 0);  self.isClicked = NO;}

3、模型准备好了,下面在viewController类里面写一个方法将plist文件数据读取出来封装到item对象里面,再用item对象初始化model对象,将所有model对象存入可变数组(_allItems)里面:

//加载数据到物品-(void)loadData{//读取数据 NSString *filePath = [[NSBundle mainBundle] pathForResource:@"shop" ofType:@"plist"]; NSArray *itemArr = [NSArray arrayWithContentsOfFile:filePath]; //创建模型 for (int i =0;i <[itemArr count] ; i++) {  Item *item = [[Item alloc] initWithString:[[itemArr objectAtIndex:i] objectForKey:@"title"] andimgPath:[[itemArr objectAtIndex:i] objectForKey:@"pic"]];  Model *model = [[Model alloc] initWithItem:item];  //未被添加的为0,添加好的为1  model.tag = 0;  [_allItems addObject:model]; }}

**注意:**model的tag是用于判断model是否已经被添加到视图里面,从而只会添加数组里面未添加的model,已添加的model也会用一个数组(displayedItems)来存储,方便删除

4、添加和删除按钮及其响应的方法:

1)add按钮:

创建:

//添加添加按钮 UIButton *addButton = [[UIButton alloc] initWithFrame:CGRectMake(_width*2/3, _height/10, 40, 40)]; [addButton setImage:[UIImage imageNamed:@"add"] forState:UIControlStateNormal]; [addButton addTarget:self action:@selector(add) forControlEvents:UIControlEventTouchUpInside]; [self.view addSubview:addButton];

add方法:

//添加事件-(void)add{ NSInteger itemCount = [_displayedItems count]; for (Model* model in _allItems) {  if (model.tag == 0) {   switch (itemCount) {    case 1:     model.frame = CGRectMake(40 + model.frame.size.width, 20, 80, 100);     break;    case 2:     model.frame = CGRectMake(60 + model.frame.size.width*2, 20, 80, 100);     break;    case 3:     model.frame = CGRectMake(20,40 + model.frame.size.height, 80, 100);     break;    case 4:     model.frame = CGRectMake(40 + model.frame.size.width, 40 + model.frame.size.height, 80, 100);     break;    case 5:     model.frame = CGRectMake(60 + model.frame.size.width*2, 40 + model.frame.size.height, 80, 100);     break;    default:     break;   }   [_scrollView addSubview:model];   [_displayedItems addObject:model];   model.tag = 1;   break;  } }}

2)delete按钮:

//添加删除按钮 UIButton *deleteButton = [[UIButton alloc] initWithFrame: CGRectMake(_width/5, _height/10, 40, 40)]; [deleteButton setImage:[UIImage imageNamed:@"delete"] forState:UIControlStateNormal]; [deleteButton addTarget:self action:@selector(delete) forControlEvents:UIControlEventTouchUpInside]; [self.view addSubview:deleteButton];

delete方法:

-(void)delete{ Model *model = _displayedItems.lastObject; [model removeFromSuperview]; model.tag = 0; [model resetModel]; [_displayedItems removeObject:model];}

嗯,由于这里为了方便,所以添加控件时的位置判断直接写死了,所以还有待改进。以上就是用按钮添加控件这个demo的主要部分,另外还有那个背景图片的模糊处理使用的是UIVisualEffectView类实现的,在此不详述了。

代码不足之处:

1、位置判断写死了
2、模型其实建一个类就够了,Item类有点多余

进阶方案:

1、通过拖动图标放置在父视图任何位置
2、点击控件文字显示于图片之上,图片成为背景并虚化

以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持武林网。
