Android BottomNavigationBar底部导航控制器使用方法详解

最近Google在自己推出的Material design中增加了Bottom Navigation导航控制。Android一直没有官方的导航控制器，自己实现确实是五花八门，有了这个规定之后，就类似苹果的底部Toolbar，以后我们的APP就会有一致的风格，先看一张效果：

Android,BottomNavigationBar,导航控制器

这是官方在Material design中给出一张图，确实很不错。

1.BottomNavigationBar的下载地址

https://github.com/Ashok-Varma/BottomNavigation

2.使用的方法

2.1在Gradle中添加

compile ‘com.ashokvarma.android:bottom-navigation-bar:0.9.5'

2.2布局实现

 <com.ashokvarma.bottomnavigation.BottomNavigationBar    android:layout_gravity="bottom"    android:id="@+id/bottom_navigation_bar"    android:layout_width="match_parent"    android:layout_height="wrap_content"/>

2.3类中Activity中添加BottomNavigationItem

BottomNavigationBar bottomNavigationBar = (BottomNavigationBar) findViewById(R.id.bottom_navigation_bar);bottomNavigationBar        .addItem(new BottomNavigationItem(R.drawable.ic_home_white_24dp, "Home"))        .addItem(new BottomNavigationItem(R.drawable.ic_book_white_24dp, "Books"))        .addItem(new BottomNavigationItem(R.drawable.ic_music_note_white_24dp, "Music"))        .addItem(new BottomNavigationItem(R.drawable.ic_tv_white_24dp, "Movies & TV"))        .addItem(new BottomNavigationItem(R.drawable.ic_videogame_asset_white_24dp, "Games"))        .initialise();

2.4设置事件监听器TabChangeListener

 bottomNavigationBar.setTabSelectedListener(new BottomNavigationBar.OnTabSelectedListener(){      @Override      public void onTabSelected(int position) {      }      @Override      public void onTabUnselected(int position) {]      }      @Override      public void onTabReselected(int position) {      }    });

3.案例的实现

布局文件

<?xml version="1.0" encoding="utf-8"?><RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"  xmlns:tools="http://schemas.android.com/tools"  xmlns:app="http://schemas.android.com/apk/res-auto" android:layout_width="match_parent"  android:layout_height="match_parent"  app:layout_behavior="@string/appbar_scrolling_view_behavior"  tools:showIn="@layout/activity_navigation_view_demo"  tools:context="com.lidong.demo.navigation_view.BottomNavigationBarDemoActivity">  <LinearLayout    android:id="@+id/tb"    android:layout_width="match_parent"     android:layout_height="match_parent"    android:orientation="vertical" />  <com.ashokvarma.bottomnavigation.BottomNavigationBar    android:id="@+id/bottom_navigation_bar"    android:layout_width="match_parent"    android:layout_alignParentBottom="true"    android:layout_height="wrap_content"/></RelativeLayout>

Activity的代码：

package com.lidong.demo.navigation_view;import android.app.FragmentManager;import android.app.FragmentTransaction;import android.os.Bundle;import android.support.v7.app.AppCompatActivity;import android.support.v7.widget.Toolbar;import android.util.Log;import com.ashokvarma.bottomnavigation.BottomNavigationBar;import com.ashokvarma.bottomnavigation.BottomNavigationItem;import com.lidong.demo.R;/** * BottomNavigationBar实现 */public class BottomNavigationBarDemoActivity extends AppCompatActivity implements BottomNavigationBar.OnTabSelectedListener {  private BottomNavigationBar bottomNavigationBar;  int lastSelectedPosition = 0;  private String TAG = BottomNavigationBarDemoActivity.class.getSimpleName();  private LocationFragment mLocationFragment;  private FindFragment mFindFragment;  private FavoritesFragment mFavoritesFragment;  private BookFragment mBookFragment;  @Override  protected void onCreate(Bundle savedInstanceState) {    super.onCreate(savedInstanceState);    setContentView(R.layout.activity_navigation_view_demo);    Toolbar toolbar = (Toolbar) findViewById(R.id.toolbar);    setSupportActionBar(toolbar);    bottomNavigationBar = (BottomNavigationBar) findViewById(R.id.bottom_navigation_bar);    bottomNavigationBar        .addItem(new BottomNavigationItem(R.mipmap.ic_location_on_white_24dp, "位置").setActiveColor(R.color.orange))        .addItem(new BottomNavigationItem(R.mipmap.ic_find_replace_white_24dp, "发现").setActiveColor(R.color.blue))        .addItem(new BottomNavigationItem(R.mipmap.ic_favorite_white_24dp, "爱好").setActiveColor(R.color.green))        .addItem(new BottomNavigationItem(R.mipmap.ic_book_white_24dp, "图书").setActiveColor(R.color.blue))        .setFirstSelectedPosition(lastSelectedPosition )        .initialise();    bottomNavigationBar.setTabSelectedListener(this);    setDefaultFragment();  }  /**   * 设置默认的   */  private void setDefaultFragment() {    FragmentManager fm = getFragmentManager();    FragmentTransaction transaction = fm.beginTransaction();    mLocationFragment = LocationFragment.newInstance("位置");    transaction.replace(R.id.tabs, mLocationFragment);    transaction.commit();  }  @Override  public void onTabSelected(int position) {    Log.d(TAG, "onTabSelected() called with: " + "position = [" + position + "]");    FragmentManager fm = this.getFragmentManager();    //开启事务    FragmentTransaction transaction = fm.beginTransaction();    switch (position) {      case 0:        if (mLocationFragment == null) {          mLocationFragment = LocationFragment.newInstance("位置");        }        transaction.replace(R.id.tb, mLocationFragment);        break;      case 1:        if (mFindFragment == null) {          mFindFragment = FindFragment.newInstance("发现");        }        transaction.replace(R.id.tb, mFindFragment);        break;      case 2:        if (mFavoritesFragment == null) {          mFavoritesFragment = FavoritesFragment.newInstance("爱好");        }        transaction.replace(R.id.tb, mFavoritesFragment);        break;      case 3:        if (mBookFragment == null) {          mBookFragment = BookFragment.newInstance("图书");        }        transaction.replace(R.id.tb, mBookFragment);        break;      default:        break;    }    // 事务提交    transaction.commit();  }  @Override  public void onTabUnselected(int position) {    Log.d(TAG, "onTabUnselected() called with: " + "position = [" + position + "]");  }  @Override  public void onTabReselected(int position) {  }}

fragment的代码

package com.lidong.demo.navigation_view;import android.app.Fragment;import android.os.Bundle;import android.view.LayoutInflater;import android.view.View;import android.view.ViewGroup;import android.widget.TextView;import com.lidong.demo.R;public class LocationFragment extends Fragment {  public static LocationFragment newInstance(String param1) {    LocationFragment fragment = new LocationFragment();    Bundle args = new Bundle();    args.putString("agrs1", param1);    fragment.setArguments(args);    return fragment;  }  public LocationFragment() {  }  @Override  public void onCreate(Bundle savedInstanceState) {    super.onCreate(savedInstanceState);  }  @Override  public View onCreateView(LayoutInflater inflater, ViewGroup container,               Bundle savedInstanceState) {    View view = inflater.inflate(R.layout.fragment_location, container, false);    Bundle bundle = getArguments();    String agrs1 = bundle.getString("agrs1");    TextView tv = (TextView)view.findViewById(R.id.tv_location);    tv.setText(agrs1);    return view;  }}

代码下载：https://github.com/lidong1665/AndroidRapidLibrary

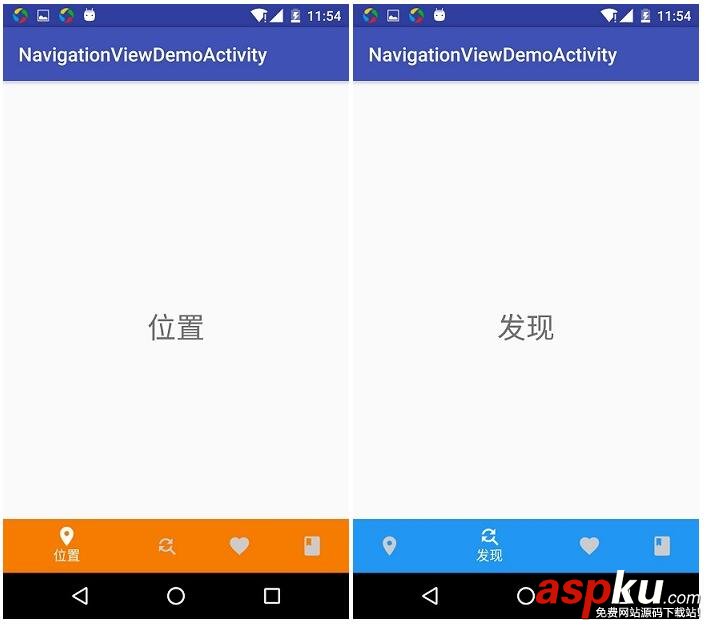

代码实现起来很简单，就加载布局，添加BottomNavigationItem，设置TabChangeListener就这三步搞定底部导航控制器。

Android,BottomNavigationBar,导航控制器

以上就是关于BottomNavigationBar底部导航控制器，希望对大家的学习有所帮助。
