实现目标

先来一张微信功能截图看看要做什么

Android微信调用第三方地图,Android微信调用地图应用导航,Android,第三方地图应用导航

其实就是有一个目的地，点击目的地的时候弹出可选择的应用进行导航。

大脑动一下，要实现这个功能应该大体分成两步：

底部弹出可选的地图菜单进行展示
点击具体菜单某一项的时候调用对应地图的api进行导航就ok啦

底部菜单这里用PopupWindow来做。

实现

1、菜单显示

PopupWindow支持传入view进行弹出展示，所有我们直接写一个菜单布局，高德、百度、腾讯再加一个取消。

map_navagation_sheet.xml

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"       android:layout_width="match_parent"       android:layout_height="wrap_content"       android:orientation="vertical">  <Button      android:id="@+id/baidu_btn"      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:background="@drawable/ulz_white_selector"      android:text="百度地图"/>  <include layout="@layout/common_line_view"/>  <Button      android:id="@+id/gaode_btn"      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:background="@drawable/ulz_white_selector"      android:text="高德地图"/>  <include layout="@layout/common_line_view"/>  <Button    android:id="@+id/tencent_btn"    android:layout_width="match_parent"    android:layout_height="wrap_content"    android:background="@drawable/ulz_white_selector"    android:text="腾讯地图"/>  <include layout="@layout/common_line_view"/>  <Button      android:id="@+id/cancel_btn2"      android:layout_width="match_parent"      android:layout_height="wrap_content"      android:background="@drawable/ulz_white_selector"      android:text="取消"/></LinearLayout>

这里为了显示效果，自己写了个PopupWindow的子类，一般你直接用PopupWindow就可以了。

然后在需要调用的地方显示PopupWindow

mapSheetView = LayoutInflater.from(this).inflate(R.layout.map_navagation_sheet, null);mBottomSheetPop = new BottomSheetPop(this);        mBottomSheetPop.setWidth(ViewGroup.LayoutParams.MATCH_PARENT);        mBottomSheetPop.setHeight(ViewGroup.LayoutParams.WRAP_CONTENT);        mBottomSheetPop.setContentView(mapSheetView);        mBottomSheetPop.setBackgroundDrawable(new ColorDrawable(0x00000000));        mBottomSheetPop.setOutsideTouchable(true);        mBottomSheetPop.setFocusable(true);        mBottomSheetPop.showAtLocation(this.getWindow().getDecorView(), Gravity.BOTTOM, 0, 0);

2、点击每个菜单调用对用地图的导航api

这个每个地图的官网都会有介绍，你只需要把目的地名称，经纬度信息传过去就好了，没什么多说的，直接贴代码。

@Override  public void onClick(View view) {    switch (view.getId()) {      case R.id.navigation_btn:        mBottomSheetPop = new BottomSheetPop(this);        mBottomSheetPop.setWidth(ViewGroup.LayoutParams.MATCH_PARENT);        mBottomSheetPop.setHeight(ViewGroup.LayoutParams.WRAP_CONTENT);        mBottomSheetPop.setContentView(mapSheetView);        mBottomSheetPop.setBackgroundDrawable(new ColorDrawable(0x00000000));        mBottomSheetPop.setOutsideTouchable(true);        mBottomSheetPop.setFocusable(true);        mBottomSheetPop.showAtLocation(this.getWindow().getDecorView(), Gravity.BOTTOM, 0, 0);        break;      case R.id.cancel_btn2:        if (mBottomSheetPop != null) {          mBottomSheetPop.dismiss();        }        break;      case R.id.baidu_btn:        if (isAvilible(this, "com.baidu.BaiduMap")) {//传入指定应用包名          try {            Intent intent = Intent.getIntent("intent://map/direction?" +                "destination=latlng:" + mInfo.getLat() + "," + mInfo.getLng() + "|name:我的目的地" +    //终点                "&mode=driving&" +     //导航路线方式                "&src=appname#Intent;scheme=bdapp;package=com.baidu.BaiduMap;end");            startActivity(intent); //启动调用          } catch (URISyntaxException e) {            Log.e("intent", e.getMessage());          }        } else {//未安装          //market为路径，id为包名          //显示手机上所有的market商店          Toast.makeText(this, "您尚未安装百度地图", Toast.LENGTH_LONG).show();          Uri uri = Uri.parse("market://details?id=com.baidu.BaiduMap");          Intent intent = new Intent(Intent.ACTION_VIEW, uri);          if (intent.resolveActivity(getPackageManager()) != null){            startActivity(intent);          }        }        mBottomSheetPop.dismiss();        break;      case R.id.gaode_btn:        if (isAvilible(this, "com.autonavi.minimap")) {          Intent intent = new Intent();          intent.setAction(Intent.ACTION_VIEW);          intent.addCategory(Intent.CATEGORY_DEFAULT);          //将功能Scheme以URI的方式传入data          Uri uri = Uri.parse("androidamap://navi?sourceApplication=appname&poiname=fangheng&lat=" + mInfo.getLat() + "&lon=" + mInfo.getLng() + "&dev=1&style=2");          intent.setData(uri);          //启动该页面即可          startActivity(intent);        } else {          Toast.makeText(this, "您尚未安装高德地图", Toast.LENGTH_LONG).show();          Uri uri = Uri.parse("market://details?id=com.autonavi.minimap");          Intent intent = new Intent(Intent.ACTION_VIEW, uri);          if (intent.resolveActivity(getPackageManager()) != null){            startActivity(intent);          }        }        mBottomSheetPop.dismiss();        break;      case R.id.tencent_btn:        Intent intent = new Intent();        intent.setAction(Intent.ACTION_VIEW);        intent.addCategory(Intent.CATEGORY_DEFAULT);        //将功能Scheme以URI的方式传入data        Uri uri = Uri.parse("qqmap://map/routeplan?type=drive&to=我的目的地&tocoord=" + mInfo.getLat() + "," + mInfo.getLng());        intent.setData(uri);        if (intent.resolveActivity(getPackageManager()) != null) {          //启动该页面即可          startActivity(intent);        } else {          Toast.makeText(this, "您尚未安装腾讯地图", Toast.LENGTH_LONG).show();        }        mBottomSheetPop.dismiss();        break;    }  }

效果图

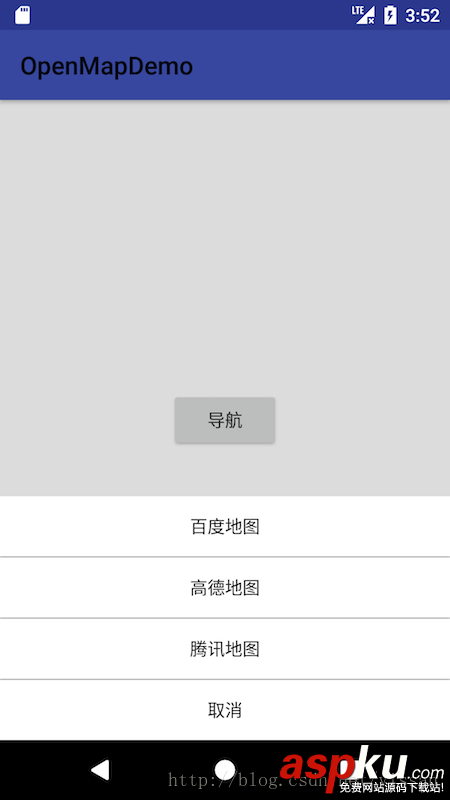

贴一下效果图

Android微信调用第三方地图,Android微信调用地图应用导航,Android,第三方地图应用导航
