Android使用URLConnection提交请求的实现

2019-10-22 18:25:48
字体:
来源:转载
供稿:网友

URL的openConnection()方法将返回一个URLConnection对象,该对象表示应用程序和URL之间的通信连接。程序可以通过URLConnection实例向该URL发送请求,读取URL引用的资源。

通常创建一个和URL的连接,并发送请求、读取此URL引用的资源需要如下几个步骤:
Step1: 通过调用URL对象的openConnection()方法来创建URLConnection对象;
Step2:设置URLConnection的参数和普通请求属性;
Step3:如果只是发送GET方式的请求,那么使用connect方法建立和远程资源之间的实际连接即可;如果需要发送POST方式的请求,则需要获取URLConnection实例对应的输出流来发送请求参数;
Step4:远程资源变为可用,程序可以访问远程资源的头字段,或通过流入流读取远程资源的数据。

下面的程序Demo示范了如何向Web站点发送GET请求、POST请求,并从Web站点取得响应。该程序中用到一个GET、POST请求的工具类,该类代码如下:

GetPostUtil.java逻辑代码如下:

package com.fukaimei.getposttest;import android.util.Log;import java.io.BufferedReader;import java.io.IOException;import java.io.InputStreamReader;import java.io.PrintWriter;import java.net.URL;import java.net.URLConnection;import java.util.List;import java.util.Map;/** * Created by FuKaimei on 2017/10/2. */public class GetPostUtil {  private static final String TAG = "GetPostUtil";  /**   * 向指定URL发送GET方式的请求   *   * @param url  发送请求的URL   * @param params 请求参数,请求参数应该是name1=value1 & name2=value2的形式   * @return URL所代表远程资源的响应   */  public static String sendGet(String url, String params) {    String result = "";    BufferedReader in = null;    try {      String urlName = url + "?" + params;      URL realUrl = new URL(urlName);      // 打开和URL之间的连接      URLConnection conn = realUrl.openConnection();      // 设置通用的请求属性      conn.setRequestProperty("accept", "*/*");      conn.setRequestProperty("connection", "Keep-Alive");      conn.setRequestProperty("user-agent", "Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1)");      // 建立实际的连接      conn.connect();      // 获取所有的响应头字段      Map<String, List<String>> map = conn.getHeaderFields();      // 遍历所有的响应头字段      for (String key : map.keySet()) {        Log.d(TAG, key + "---->" + map.get(key));      }      // 定义BufferedReader输入流来读取URL的响应      in = new BufferedReader(new InputStreamReader(conn.getInputStream()));      String line;      while ((line = in.readLine()) != null) {        result += "/n" + line;      }    } catch (Exception e) {      Log.d(TAG, "发送GET请求出现异常!" + e);      e.printStackTrace();    } finally { // 使用finally块来关闭输入流      try {        if (in != null) {          in.close();        }      } catch (IOException e) {        e.printStackTrace();      }    }    return result;  }  /**   * 向指定URL发送POST方式的请求   *   * @param url  发送请求的URL   * @param params 请求参数,请求参数应该是name1=value1 & name2=value2的形式   * @return 所代表远程资源的响应   */  public static String sendPost(String url, String params) {    PrintWriter out = null;    BufferedReader in = null;    String result = "";    try {      URL realUrl = new URL(url);      // 打开和URL之间的连接      URLConnection conn = realUrl.openConnection();      // 设置通用的请求属性      conn.setRequestProperty("accept", "*/*");      conn.setRequestProperty("connection", "Keep-Alive");      conn.setRequestProperty("user-agent", "Mozilla/4.0 (compatible; MSIE 6.0; Windows NT 5.1; SV1)");      // 发送POST请求必须设置如下两行      conn.setDoOutput(true);      conn.setDoInput(true);      // 获取URLConnection对象对应的输出流      out = new PrintWriter(conn.getOutputStream());      // 发送请求参数      out.print(params);      // flush输出流的缓存      out.flush();      // 定义BufferedReader输入流来读取URL的响应      in = new BufferedReader(new InputStreamReader(conn.getInputStream()));      String line;      while ((line = in.readLine()) != null) {        result += "/n" + line;      }    } catch (Exception e) {      Log.d(TAG, "发送POST请求出现异常!" + e);      e.printStackTrace();    } finally { // 使用finally块来关闭输出流、输入流      try {        if (out != null) {          out.close();        }        if (in != null) {          in.close();        }      } catch (IOException e) {        e.printStackTrace();      }    }    return result;  }}

从上面的程序Demo可以看出,如果需要发送GET请求,只要调用URLConnection的connect()方法去建立实际的连接即可。如果需要发送POST请求,则需要获取URLConnection的OutputStream,然后再向网络中输出请求参数。
提供了上面发送GET请求、POST请求的工具类之后,接下来就可以在Activity类中通过该工具类发送请求了。该程序的界面中包含两个按钮,一个按钮用于发送GET请求,一个按钮用于发送POST请求。程序还提供了一个EditText来显示服务器的响应。

layout/activity_main.xml界面布局代码如下:

<?xml version="1.0" encoding="utf-8"?><LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"  android:layout_width="match_parent"  android:layout_height="match_parent"  android:orientation="vertical">  <LinearLayout    android:layout_width="match_parent"    android:layout_height="wrap_content"    android:gravity="center"    android:orientation="horizontal">    <Button      android:id="@+id/get"      android:layout_width="wrap_content"      android:layout_height="wrap_content"      android:text="发送GET请求" />    <Button      android:id="@+id/post"      android:layout_width="wrap_content"      android:layout_height="wrap_content"      android:text="发送POST请求" />  </LinearLayout>  <TextView    android:id="@+id/show"    android:layout_width="match_parent"    android:layout_height="match_parent"    android:background="#ffff"    android:gravity="top"    android:textColor="#f000"    android:textSize="16sp" /></LinearLayout>

MainActivity.java逻辑代码如下:



package com.fukaimei.getposttest;import android.os.Handler;import android.os.Message;import android.support.v7.app.AppCompatActivity;import android.os.Bundle;import android.view.View;import android.widget.Button;import android.widget.TextView;public class MainActivity extends AppCompatActivity {  Button get, post;  TextView show;  // 代表服务器响应的字符串  String response;  Handler handler = new Handler() {    @Override    public void handleMessage(Message msg) {      if (msg.what == 0x123) {        // 设置show控件服务器响应        show.setText(response);      }    }  };  @Override  protected void onCreate(Bundle savedInstanceState) {    super.onCreate(savedInstanceState);    setContentView(R.layout.activity_main);    get = (Button) findViewById(R.id.get);    post = (Button) findViewById(R.id.post);    show = (TextView) findViewById(R.id.show);    get.setOnClickListener(new View.OnClickListener() {      @Override      public void onClick(View v) {        new Thread() {          @Override          public void run() {            response = GetPostUtil.sendGet("https://www.mi.com/", null);            // 发送消息通知UI线程更新UI组件            handler.sendEmptyMessage(0x123);          }        }.start();      }    });    post.setOnClickListener(new View.OnClickListener() {      @Override      public void onClick(View v) {        new Thread() {          @Override          public void run() {            response = GetPostUtil.sendPost("http://172.xx.xx.xxx:8080/fukaimei/login.jsp", "name=android&pass=123");          }        }.start();        // 发送消息通知UI线程更新UI组件        handler.sendEmptyMessage(0x123);      }    });  }}

上面程序Demo中用于发送GET请求、POST请求。从上面的代码可以发现,借助于URLConnection类的帮助,应用程序可以非常方便地与指定站点交换信息,包括发送GET请求、POST请求,并获取网站的响应等。

注意:由于该程序需要访问互联网,因此还需要在清单文件AndroidManifest.xml文件中授权访问互联网的权限:

<!-- 授权访问互联网-->  <uses-permission android:name="android.permission.INTERNET" />

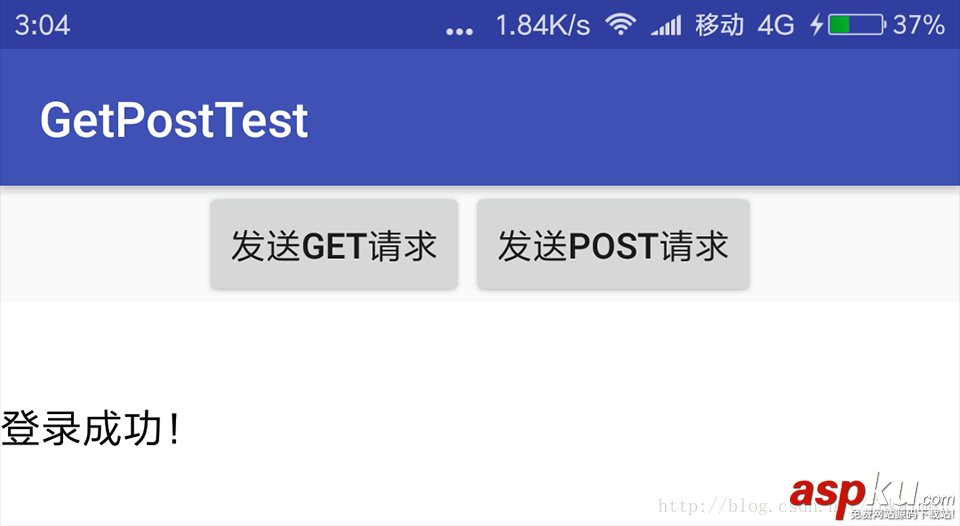

Demo程序运行效果界面截图如下:

Android,URLConnectionAndroid,URLConnection

以上就是本文的全部内容,希望对大家的学习有所帮助,也希望大家多多支持VEVB武林网。
