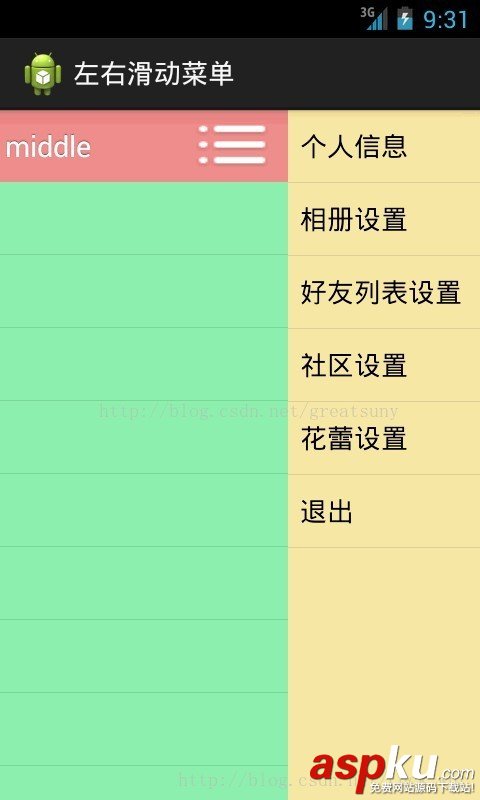

android实现左右侧滑菜单效果

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:orientation="vertical" > <android.support.v4.widget.DrawerLayout  android:id="@+id/dl"  android:layout_width="match_parent"  android:layout_height="match_parent"  android:layout_above="@+id/tv" >  <!-- 作为侧拉菜单 主页面显示的效果 要写在布局的最上面 首先进行加载 -->  <FrameLayout   android:id="@+id/fl"   android:layout_width="match_parent"   android:layout_height="match_parent" >  </FrameLayout>  <ListView   android:id="@+id/lv"   android:layout_width="match_parent"   android:layout_height="match_parent"   android:background="#ff0"   android:layout_gravity="left" >  </ListView>  <LinearLayout   android:id="@+id/ll"   android:layout_width="200dp"   android:layout_height="match_parent"   android:layout_gravity="right"   android:background="#0ff"   android:orientation="vertical" >   <ImageView    android:layout_width="100dp"    android:layout_height="100dp"    android:src="@drawable/ic_launcher" />   <TextView    android:layout_width="wrap_content"    android:layout_height="wrap_content"    android:layout_margin="20dp"    android:text="呵呵呵" />  </LinearLayout> </android.support.v4.widget.DrawerLayout></LinearLayout>

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android" xmlns:tools="http://schemas.android.com/tools" android:layout_width="match_parent" android:layout_height="match_parent" android:gravity="center" android:orientation="vertical" > <TextView  android:id="@+id/tv_title"  android:layout_width="wrap_content"  android:layout_height="wrap_content"  android:layout_margin="20dp"  android:text="标题" /> <ImageView  android:id="@+id/iv"  android:layout_width="100dp"  android:layout_height="100dp"  android:src="@drawable/ic_launcher" /></LinearLayout>

import java.util.ArrayList;import java.util.List;import com.example.day12drawerlayout1.fragment.MainFragment;import android.os.Bundle;import android.support.v4.app.FragmentActivity;import android.support.v4.app.FragmentTransaction;import android.support.v4.widget.DrawerLayout;import android.support.v4.widget.DrawerLayout.DrawerListener;import android.util.Log;import android.view.Gravity;import android.view.View;import android.widget.AdapterView;import android.widget.AdapterView.OnItemClickListener;import android.widget.ArrayAdapter;import android.widget.ListView;/** * 1、静态和动态Fragment的使用 *  静态 直接在布局中使用<fragment /> *  动态 使用管理器 得到一个事务 然后使用事务调用replace方法 把一个Fragment对象替换到指定id的FramLayout帧布局中 * @author Administrator * */public class MainActivity extends FragmentActivity { DrawerLayout dl; ListView lv; @Override protected void onCreate(Bundle savedInstanceState) {  super.onCreate(savedInstanceState);  setContentView(R.layout.activity_main);  dl = (DrawerLayout) findViewById(R.id.dl);  //  FrameLayout fl = (FrameLayout) findViewById(R.id.fl);  //  fl.setOnClickListener(new OnClickListener() {  //     //   @Override  //   public void onClick(View v) {  //    // TODO Auto-generated method stub  //    dl.openDrawer(Gravity.RIGHT);  //   }  //  });  /**   * set 一般是只有一个 如果再次调用会把前面的覆盖掉   * 和    * add 把数据添加进去 不会覆盖之前的内容   */  dl.addDrawerListener(new DrawerListener() {   //滑动状态发生改变的时候 会调用该方法   @Override   public void onDrawerStateChanged(int arg0) {    // TODO Auto-generated method stub    Log.i("===============================", "StateChanged" + arg0);   }   //监听滑动过程中 边界的位置   @Override   public void onDrawerSlide(View arg0, float arg1) {    // TODO Auto-generated method stub    Log.i("===============================", "DrawerSlide" + arg1);   }   //监听侧拉是否完全展开   @Override   public void onDrawerOpened(View arg0) {    // TODO Auto-generated method stub    Log.i("===============================", "DrawerOpened");   }   //监听侧拉是否被关闭   @Override   public void onDrawerClosed(View arg0) {    // TODO Auto-generated method stub    Log.i("===============================", "DrawerClosed");   }  });  showMain();  showLV(); } public DrawerLayout getDL(){  return dl; } private void showLV() {  lv = (ListView) findViewById(R.id.lv);  final List<String> list = new ArrayList<String>();  for (int i = 1; i < 30; i++) {   list.add("条目"+i);  }  ArrayAdapter<String> adapter = new ArrayAdapter<String>(this, android.R.layout.simple_list_item_1, list);  lv.setAdapter(adapter);  lv.setOnItemClickListener(new OnItemClickListener() {   @Override   public void onItemClick(AdapterView<?> parent, View view,     int position, long id) {    // TODO Auto-generated method stub    dl.closeDrawer(Gravity.LEFT);    //把点击的listview控件中的值 赋值到主Fragment对象中    MainFragment fragment = (MainFragment) getSupportFragmentManager().findFragmentByTag("main");    fragment.setData(list.get(position));   }  }); } /**  * 在侧拉效果的页面中 用来显示主页面的效果  */ private void showMain() {  //动态加载Fragment  FragmentTransaction transaction = getSupportFragmentManager().beginTransaction();  //参数1：FramLayout控件的id， 要替换的Fragment对象  transaction.replace(R.id.fl, new MainFragment(), "main");  transaction.commit(); }}

import android.os.Bundle;import android.support.annotation.Nullable;import android.support.v4.app.Fragment;import android.view.Gravity;import android.view.LayoutInflater;import android.view.View;import android.view.View.OnClickListener;import android.view.ViewGroup;import android.widget.ImageView;import android.widget.TextView;import com.example.day12drawerlayout1.MainActivity;import com.example.day12drawerlayout1.R;public class MainFragment extends Fragment{ TextView tv; ImageView iv; @Override @Nullable public View onCreateView(LayoutInflater inflater,   @Nullable ViewGroup container, @Nullable Bundle savedInstanceState) {  View view = View.inflate(getActivity(), R.layout.frag_main, null);  tv = (TextView) view.findViewById(R.id.tv_title);  iv = (ImageView) view.findViewById(R.id.iv);  iv.setOnClickListener(new OnClickListener() {   @Override   public void onClick(View v) {    // TODO Auto-generated method stub    MainActivity activity = (MainActivity) getActivity();    activity.getDL().openDrawer(Gravity.RIGHT);   }  });  return view; } public void setData(String str){  tv.setText(str); }}
