Android viewpager自动轮播和小圆点联动效果

2019-10-22 18:26:12

字体：大中小

来源：转载

供稿：网友

本文实例为大家分享了Android九宫格图片展示的具体代码，供大家参考，具体内容如下

首先来看一下我们要做成的而效果：

主页面要显示一个viewpager自动轮播+小圆点联动的效果：

Android自动轮播,viewpager自动轮播,Android小圆点联动

废话不多说，直接上代码：

布局文件：

Android自动轮播,viewpager自动轮播,Android小圆点联动

activity_main.xml：

<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"  xmlns:tools="http://schemas.android.com/tools"  android:layout_width="match_parent"  android:layout_height="match_parent"  android:orientation="vertical" >  <RelativeLayout    android:layout_width="match_parent"    android:layout_height="200dp" >    <android.support.v4.view.ViewPager      android:id="@+id/main_vp"      android:layout_width="match_parent"      android:layout_height="200dp" >    </android.support.v4.view.ViewPager>    <LinearLayout      android:id="@+id/ll_doc"      android:layout_width="match_parent"      android:layout_height="40dp"      android:layout_alignParentBottom="true"      android:gravity="center"      android:orientation="horizontal" >    </LinearLayout>  </RelativeLayout>  <LinearLayout    android:layout_width="match_parent"    android:layout_height="100dp" >  </LinearLayout>  <LinearLayout    android:layout_width="match_parent"    android:layout_height="80dp" >  </LinearLayout>  <GridView    android:id="@+id/main_gv"    android:layout_width="match_parent"    android:layout_height="match_parent"     android:numColumns="2"    >  </GridView></LinearLayout>

menu下的main.xml：

<menu xmlns:android="http://schemas.android.com/apk/res/android"  xmlns:tools="http://schemas.android.com/tools"  tools:context="com.example.monthextwo.MainActivity" >  <item    android:id="@+id/action_settings"    android:orderInCategory="100"    android:showAsAction="never"    android:title="@string/action_settings"/></menu>

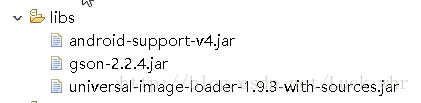

接下来看一下要用到的架包文件：

Android自动轮播,viewpager自动轮播,Android小圆点联动

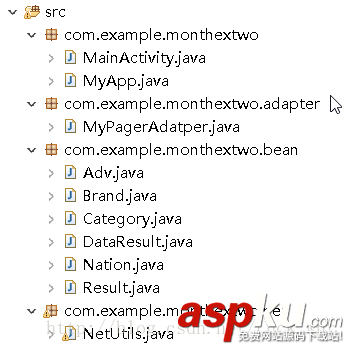

最后是Java文件：

Android自动轮播,viewpager自动轮播,Android小圆点联动

首先是com.example.monthextwo包中的MainActivity.java：

public class MainActivity extends Activity {  ViewPager vp;  DataResult data;  List<ImageView> list;  List<ImageView> list_doc;  @Override  protected void onCreate(Bundle savedInstanceState) {    super.onCreate(savedInstanceState);    setContentView(R.layout.activity_main);    initView();    initData();  }  private void initView() {    vp = (ViewPager) findViewById(R.id.main_vp);  }  public void initDoc(){    LinearLayout ll_dco = (LinearLayout) findViewById(R.id.ll_doc);    list_doc = new ArrayList<ImageView>();    if(data != null && data.getResult().getAdvs().size() > 0){      for (int i = 0; i < data.getResult().getAdvs().size(); i++) {        ImageView iv = new ImageView(this);        LayoutParams params = new LayoutParams(LayoutParams.WRAP_CONTENT, LayoutParams.WRAP_CONTENT);        params.rightMargin = 10;        iv.setLayoutParams(params);        if(i == 0){          iv.setBackgroundResource(R.drawable.doc_check);        }else{          iv.setBackgroundResource(R.drawable.doc_uncheck);        }        ll_dco.addView(iv);        list_doc.add(iv);      }    }  }  private void initData() {    new AsyncTask<String, String, String>(){      @Override      protected String doInBackground(String... params) {        String json = NetUtils.getNetData("http://www.babybuy100.com/API/getShopOverview.ashx");        Gson gson = new Gson();        data = gson.fromJson(json, DataResult.class);        Log.i("=================", data.toString());        return null;      }      @Override      protected void onPostExecute(String result) {        initVP();        super.onPostExecute(result);      }    }.execute();  }  protected void initVP() {    list = new ArrayList<ImageView>();    if(data != null && data.getResult().getAdvs().size() > 0){      for (int i = 0; i < data.getResult().getAdvs().size(); i++) {        ImageView iv = new ImageView(this);        iv.setScaleType(ScaleType.FIT_XY);        ImageLoader.getInstance().displayImage(data.getResult().getAdvs().get(i).getPic(), iv);        list.add(iv);      }      //创建适配器      MyPagerAdatper myPagerAdatper = new MyPagerAdatper(list);      vp.setAdapter(myPagerAdatper);      initDoc();      vp.addOnPageChangeListener(new OnPageChangeListener() {        @Override        public void onPageSelected(int arg0) {          int index = arg0 % list_doc.size();          for (int i = 0; i < list_doc.size(); i++) {            list_doc.get(i).setBackgroundResource(R.drawable.doc_uncheck);          }          list_doc.get(index).setBackgroundResource(R.drawable.doc_check);        }        @Override        public void onPageScrolled(int arg0, float arg1, int arg2) {          // TODO Auto-generated method stub        }        @Override        public void onPageScrollStateChanged(int arg0) {          // TODO Auto-generated method stub        }      });    }  }}

MyApp.xml：

public class MyApp extends Application{  @Override  public void onCreate() {    // TODO Auto-generated method stub    super.onCreate();    ImageLoaderConfiguration configuration = ImageLoaderConfiguration.createDefault(this);    ImageLoader.getInstance().init(configuration);  }}

com.example.monthextwo.adapter包下的MyPagerAdatper.java：

public class MyPagerAdatper extends PagerAdapter{  List<ImageView> list;  public MyPagerAdatper(List<ImageView> list) {    super();    this.list = list;  }  @Override  public int getCount() {    if(list != null){      return Integer.MAX_VALUE;    }    return 0;  }  @Override  public boolean isViewFromObject(View arg0, Object arg1) {    // TODO Auto-generated method stub    return arg0 == arg1;  }  @Override  public void destroyItem(ViewGroup container, int position, Object object) {    // TODO Auto-generated method stub    container.removeView((View) object);  }  @Override  public Object instantiateItem(ViewGroup container, int position) {    int index = position % list.size();    container.addView(list.get(index));    return list.get(index);  }}

com.example.monthextwo.bean包下的Adv.java：

public class Adv {  String pic;  public String getPic() {    return pic;  }  public void setPic(String pic) {    this.pic = pic;  }  @Override  public String toString() {    return "Avd [pic=" + pic + "]";  }}

Brand.java： *这是个空文件*

public class Category { }

Category.java： *这是个空文件*

public class Category { }

DataResult.java：

public class DataResult {  Result result;  public Result getResult() {    return result;  }  public void setResult(Result result) {    this.result = result;  }  @Override  public String toString() {    return "DataResult [result=" + result + "]";  }}

Nation.java： *这是个空文件*

public class Nation { }

Result.java：

public class Result { List<Adv> advs = new ArrayList<Adv>(); List<Brand> brands = new ArrayList<Brand>(); List<Category> categorys = new ArrayList<Category>(); List<Nation> nations = new ArrayList<Nation>(); public List<Adv> getAdvs() { return advs; } public void setAdvs(List<Adv> advs) { this.advs = advs; } public List<Brand> getBrands() { return brands; } public void setBrands(List<Brand> brands) { this.brands = brands; } public List<Category> getCategorys() { return categorys; } public void setCategorys(List<Category> categorys) { this.categorys = categorys; } public List<Nation> getNations() { return nations; } public void setNations(List<Nation> nations) { this.nations = nations; } @Override public String toString() { return "Result [avds=" + advs + ", brands=" + brands + ", categorys="  + categorys + ", nations=" + nations + "]"; }}

com.example.monthextwo.net包下的NetUtils.java：

public class NetUtils { public static String getNetData(String path){ String json = ""; try {  URL url = new URL(path);  HttpURLConnection conn = (HttpURLConnection) url.openConnection();  conn.setRequestMethod("GET");  int code = conn.getResponseCode();  if(code == 200){  InputStream is = conn.getInputStream();  ByteArrayOutputStream bos = new ByteArrayOutputStream();  int len = -1;  byte[] buff = new byte[1024];  while((len = is.read(buff)) != -1){   bos.write(buff, 0, len);  }  json = new String(bos.toByteArray());  } } catch (Exception e) {  // TODO Auto-generated catch block  e.printStackTrace(); } return json; }}

以上就是全部的代码了，新手练习。

以上就是本文的全部内容，希望对大家的学习有所帮助，也希望大家多多支持VEVB武林网。
